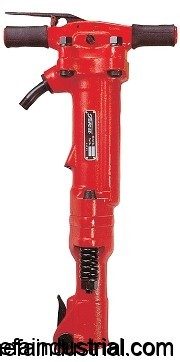

Toku Pneumatic Jack Hammer – Paving Breakers – we deliver
Photo:
Description:
- TPB breakers are made from forged steel and high quality components.
- They are tough and robust. These features are well suited for rental industry.
- TPB breakers are used in road construction and building foundation jobs. They are used for breaking highly densed concrete. Anti-vibration type of handles are available. (as option).
Specifications:
| Model | Piston Dia (mm) |
Piston Stroke (mm) |
Weight (kg) |
Overall Length (mm) |
Blow per Min (bpm) |
Shank Size Hex (in) |
Air Cons (m³/min) |
Air Inlet (NPT) |
Hose Size (mm) |
|---|---|---|---|---|---|---|---|---|---|
| TPB-30 | 44.45 | 85 | 15 | 564 | 1,550 | H 1×4-¼ | 1.4 | 3/8 | 12.7 |
| TPB-40SV | 44 | 146 | 19.5 | 654 | 1,100 | H 1×4-¼ | 1.6 | 1/2 | 19 |
| TPB-40 | 44 | 146 | 18 | 660 | 1,100 | H 1×4-¼ | 1.6 | 1/2 | 19 |
| TPB-501SV | 50 | 156 | 28.1 | 714 | 1,250 | H 1-¼×6 | 1.4 | 1/2 | 19 |
| TPB-60 | 57.15 | 100 | 30 | 645 | 1,400 | H 1-¼×6 | 2.0 | 3/4 | 19 |
| TPB-73 | 57.15 | 144 | 31 | 690 | 1,200 | H 1-¼×6 | 1.8 | 3/4 | 19 |
| TPB-90 | 66.67 | 152 | 42 | 723 | 1,250 | H 1-¼×6 | 2.2 | 3/4 | 19 |
*Specifications; Operating air pressure based on 0.6 MPa.
